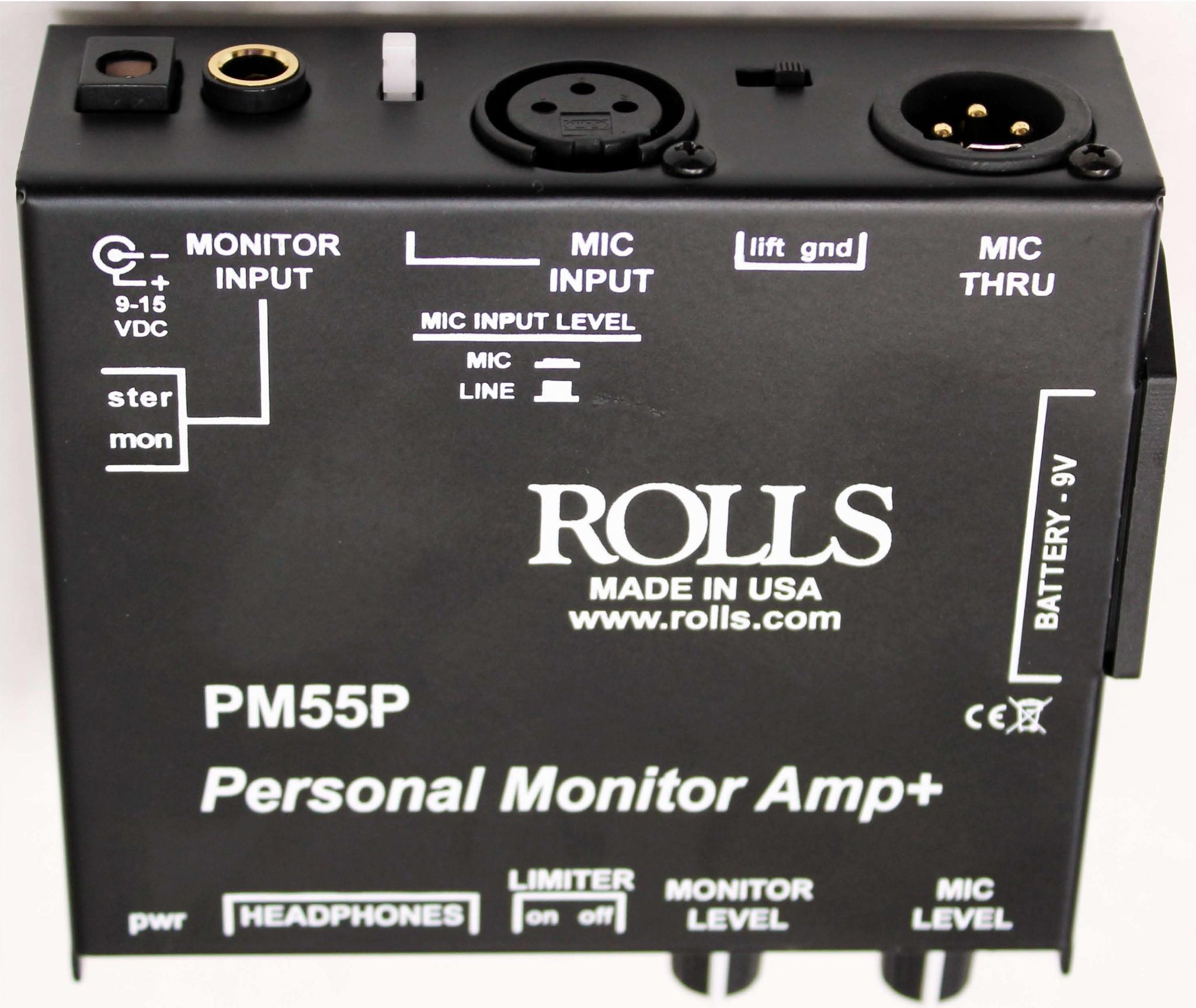

               Elite Core PMA                                                                         Rolls PM55P                                                                                 JTS PMM4

Hard Wired Earphone Amp
In Ear Monitor Hard Wired Amp
Hard wired in ear monitor amp mixer

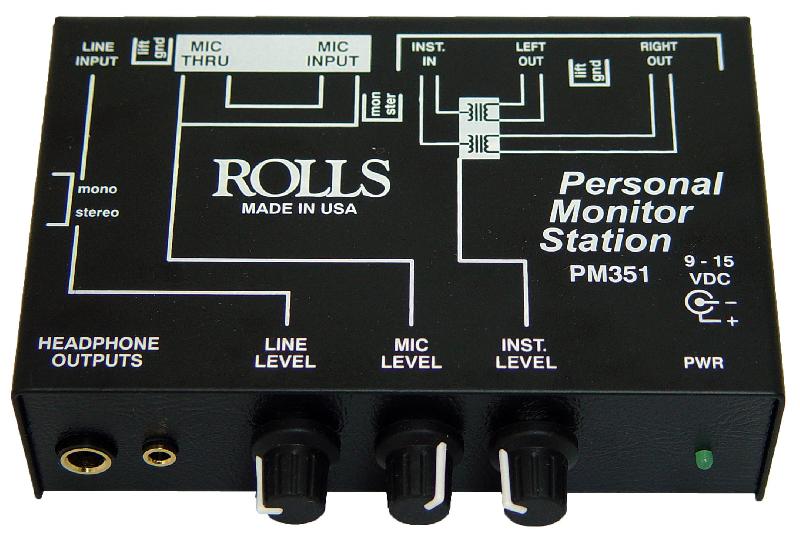

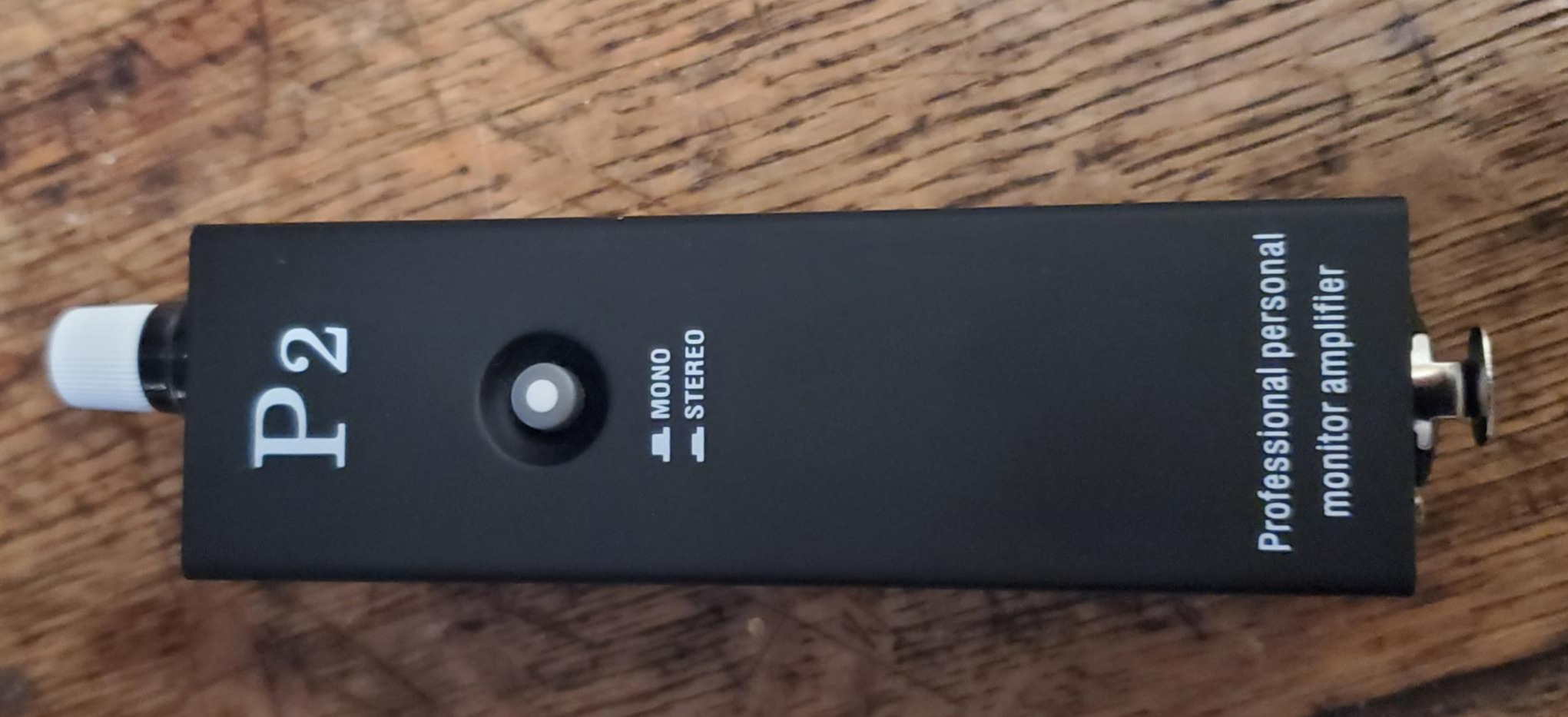

                 Behringer P2                                                            Behringer P1                                                                               Rolls PM351


Hard Wired In Ear Monitor Amps & Getting a Signal

Hard Wired In Ear Monitor Amps & Getting a Signal
Mike Volkerding Freq City Sound & InEarGear.com

Let's talk a little bit about how to get a signal to your hardwired in ear monitor amp. On standard analog boards you have a number of auxiliary sends. If you look at a channel strip you'll see the fader, EQ section, and AUX send section. You'll need one of those auxiliary sends to be open in order for you to get a personal mix. AUX SENDS are commonly used for sending reverb, delay or a monitor mix. If you have an open auxiliary send that will be your mix. On the back of the console you'll see the AUX outputs. Take that output whether it be a tip ring sleeve (TRS) or an XLR from that output straight to your hardwired in ear monitor amplifier. The mix of instruments and vocals will be done at the console. You'll have overall volume control at your amp.

Let's say you've chosen AUX 1 as your mix. You want more guitar? Go to the guitar channel and on that channel turn up AUX 1. Repeat this for every instrument plugged into the console to create your own personal monitor mix.

It's pretty much the same on the new digital consoles and rack mixers only you have a lot more flexibility. Many digital consoles and rack consoles for ipad have as many as 10 AUX sends where our old analog boards, we were lucky to see 6 . You also have the ability within your AUX SEND to EQ your mix, ad reverb etc. The process is essentially the same though. Your AUX SEND is your in ear monitor mix.

There are a lot of creative ways to get a mix with a personal amp even if you don't have an AUX SEND on your console. Several of the monitor amps have two inputs, some three. They also have through-puts. Meaning, you plug your microphone in to the amp and then out of the other side on to the console. You now have control of that microphone volume in your ear. Now we need to consider what goes into the other input of the amplifier. Let's say you're mixing console doesn't have enough open AUX SEND's to give you your own personal monitor mix.

Get a split from what ever monitor mix their sending and plug it into the other side of your amp. Now you have an overall monitor mix and you were vocal as loud as you want.

Let's just take a split of the front of house mix and run it in to channel 2. Now you have a nice balanced full band signal to mix in your vocal and as needed.

I'm just thinking out loud here. How about we set a microphone in the room and run it into the second channel of your monitor amp. Now you pick up everything on stage with one microphone and balance your vocal and as you like.

I'm sure there are several more ideas we could come up with. They all have their pluses and drawbacks but what I'm trying to get through is the versatility of a personal monitor amp.

If you guys come up with anything new get it to me and I'll add it to our list.
