MIPRO MI909 Fully Digital Wireless In-Ear Monitor System
OUT OF STOCK / All the dates I've been given have proven to be wishful thinking. Let go with, when you see them in stock on my sites and the paypal button working, we're back in business

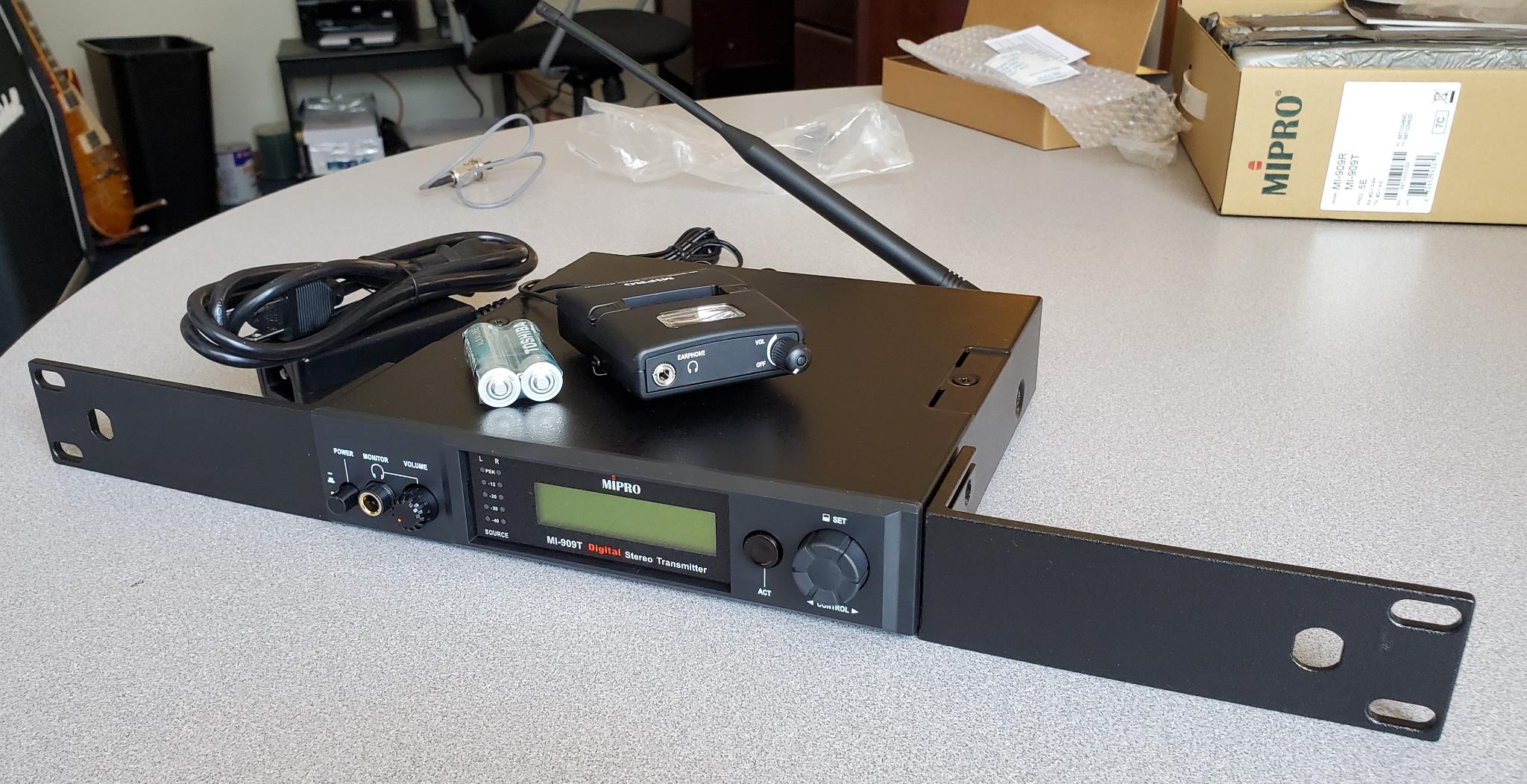

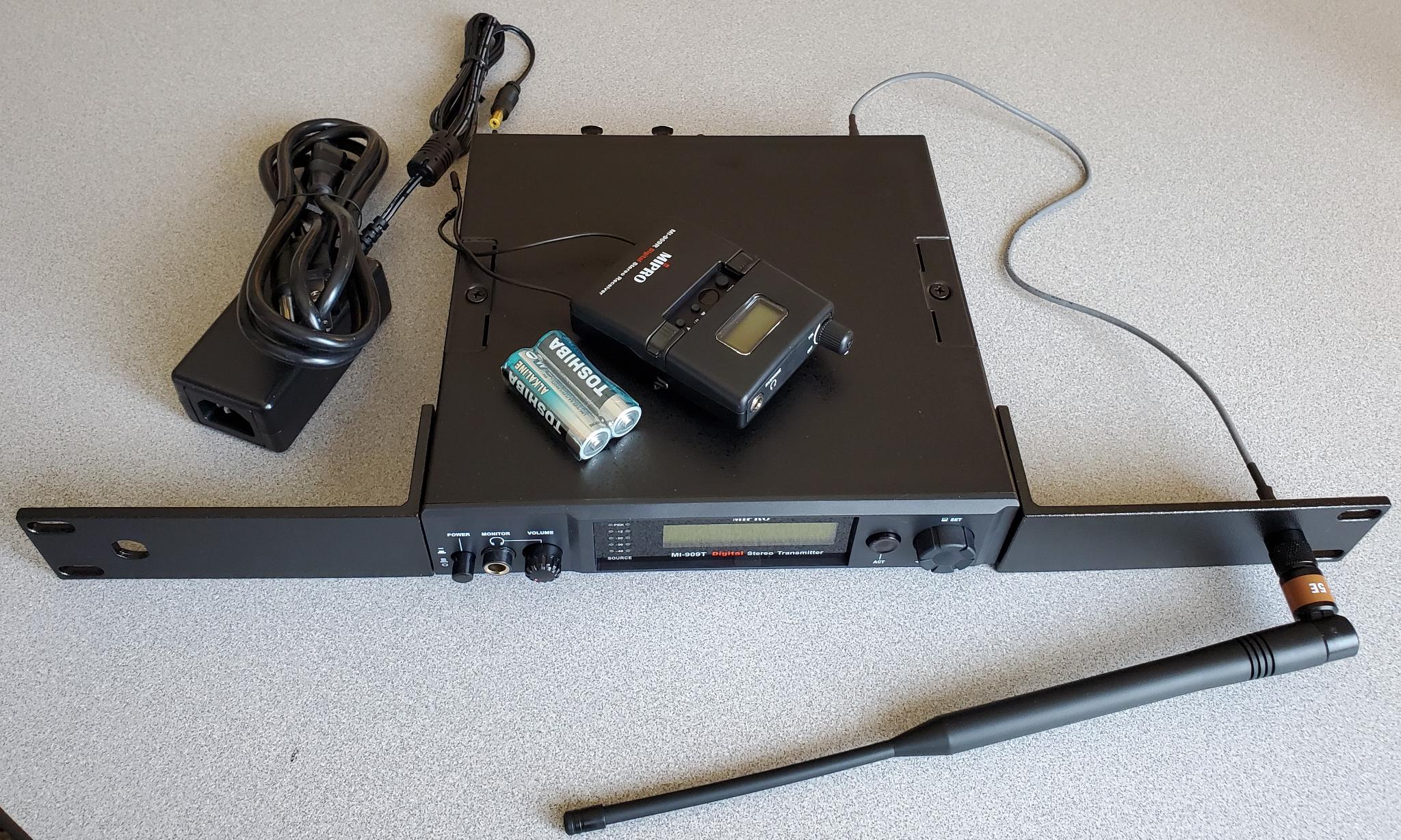

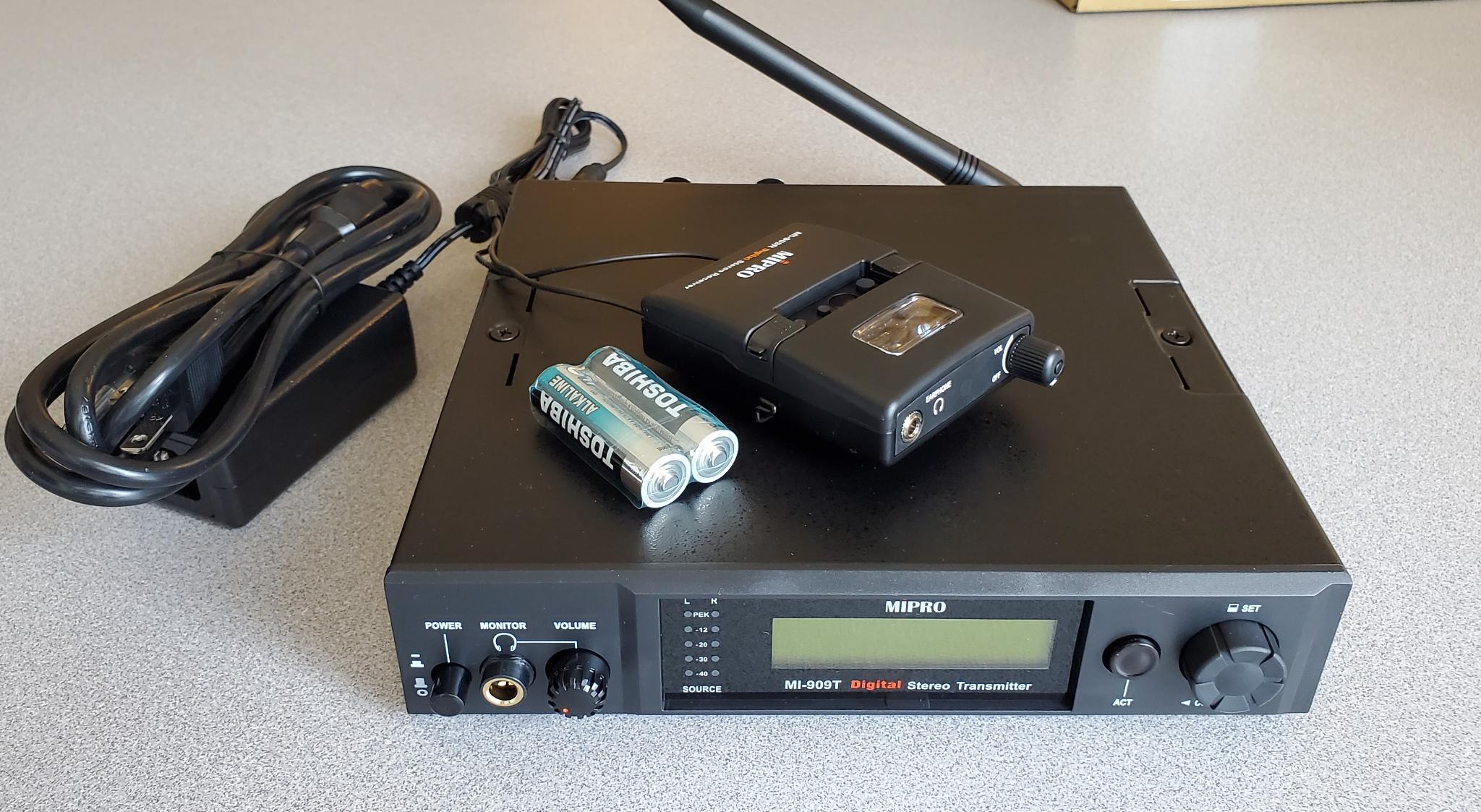

Mipro MI909 System. Comes with Transmitter, Belt Pack, Antenna & Power Supply. (No Back to front Antenna or rack mount parts)
Mipro MI909 System. Comes with Transmitter, Belt Pack, Antenna & Power Supply. (Package adds the rack mount parts)
Mipro MI909 System. Comes with Transmitter, Belt Pack, Antenna, & Power Supply. (Package Adds Rack Mount Parts & Back to Front Antenna Extension)
The MI-909T/R system is a professional-quality true digital wireless stereo IEM system featuring digital encryption capabilities with unparalleled digital audio performance and transmission reliability. The superior frequency response characteristics from 20Hz to 15kHz clearly exceed that of analog systems. Combining DSP and digital diversity technologies, MIPRO's MI-909 system is the industry's only true digital IEM system. The MI-909 boasts 112dBa of dynamic range, enhanced s/n ratio, extended frequency response and advanced features that provide crystal clear audio that sets a new standard in wireless in-ear monitoring.
Combining DSP and digital diversity technologies, MIPRO's MI-909 system cleans the clock spec and sound wise of the PSM900 and the G4. The Mipro MI-909 boasts 112dBa of dynamic range, enhanced s/n ratio, extended frequency response and advanced features that provide crystal clear audio that sets a new standard in wireless in-ear monitoring.
I often have people ask me to explain the “WIDE-BAND” RF options available in the Mipro MI909 system. Simply put, take a Shure wireless system in the G5 frequency range. The Mipro MI909 would have a G5, G6 and a G7. Why is this important? You have a lot more channels from which to choose. In today’s crowded RF environment this is a big deal. The old Mipro MI808 (a great system retired due to the 600Mhz thing) Was like the Shure and the Sennheiser systems with a rather narrow frequency range availability. Like Shure and Sennheiser, we offered several different freq range systems to deal with that. I would have to check the clients location and find the best frequency availability for that area. If you were going into New York City, Chicago, Los Angeles any really large city I would be scrambling and combining systems to get it done. With musicians on tour I always felt like I was rolling the dice. With the new wideband availability I don’t even need to check it. You’ll be fine wherever you go in the US. You’ll have a plethora of open channels available to you. No worries.
My opinion: I've never heard an in ear system with such clarity and power as the new Mipro MI909 Digital. I'll point out a few specs in a bit to back this up. All of the Shure and Sennheiser systems I've used through the years had adequate volume. Throughout the show you could end up at the 3/4 point on your belt pack. I always wished I could be at half so I had plenty left if I wanted it. Keep in mind, I'm 65 and stood in front of many a Marshall stack through the last 45 years as well as mixed plenty of PA systems for 50,000+ people.
Being digital, I’ve been asked me about the latency (slight delay). Obviously if you're using a digital console to digital ears it's cut way down. If you don't use the encryption it's also cut down. On the worse case scenario, your looking at about 5 milliseconds. About the distance your floor monitors speaker takes to get to your head. Ever hear that delay? Scan down. I'll include an email from a guy that was obsessed with "latency." I’ve shipped hundreds of these systems globally and I’ve never had anyone comment on “latency.” Also this latency question was when the MI909 just came out. It’s been out for a couple years now and this is no longer an ongoing question.
I've owned lot of ear systems from Sennheiser and Shure and in my humble opinion - This is the greatest system on earth. I know Lectrosonics just came out with a wireless in ear system but it starts at around $2500. I haven’t heard that one yet.
MIPRO MI909T Transmitter
The Mipro MI-909T is a rugged digitally-encrypted rack transmitter. It operates in a 64 MHz wide bandwidth and allows multiple preset compatible channels operation. Delivering up to 50mW output power, it has high dynamic range stereo audio inputs and can withstand professional audio mixers’ maximum output levels. Menu settings allow input sensitivity, encryption, EQ DSP processors to be set-up via a rotary control knob. A built-in Scan function enables auto-scanning for an open, interference-free frequency and, once selected, that frequency can sync with the bodypack receiver with a simple push of the ACT button. The Mipro MI-909T is ideal for both live applications and professional installations such as language interpretation.
Frequency Range 5E 480~544 MHz
Bandwidth 64 MHz
Oscillation Mode PLL Synthesized
Channel Grid 25 kHz

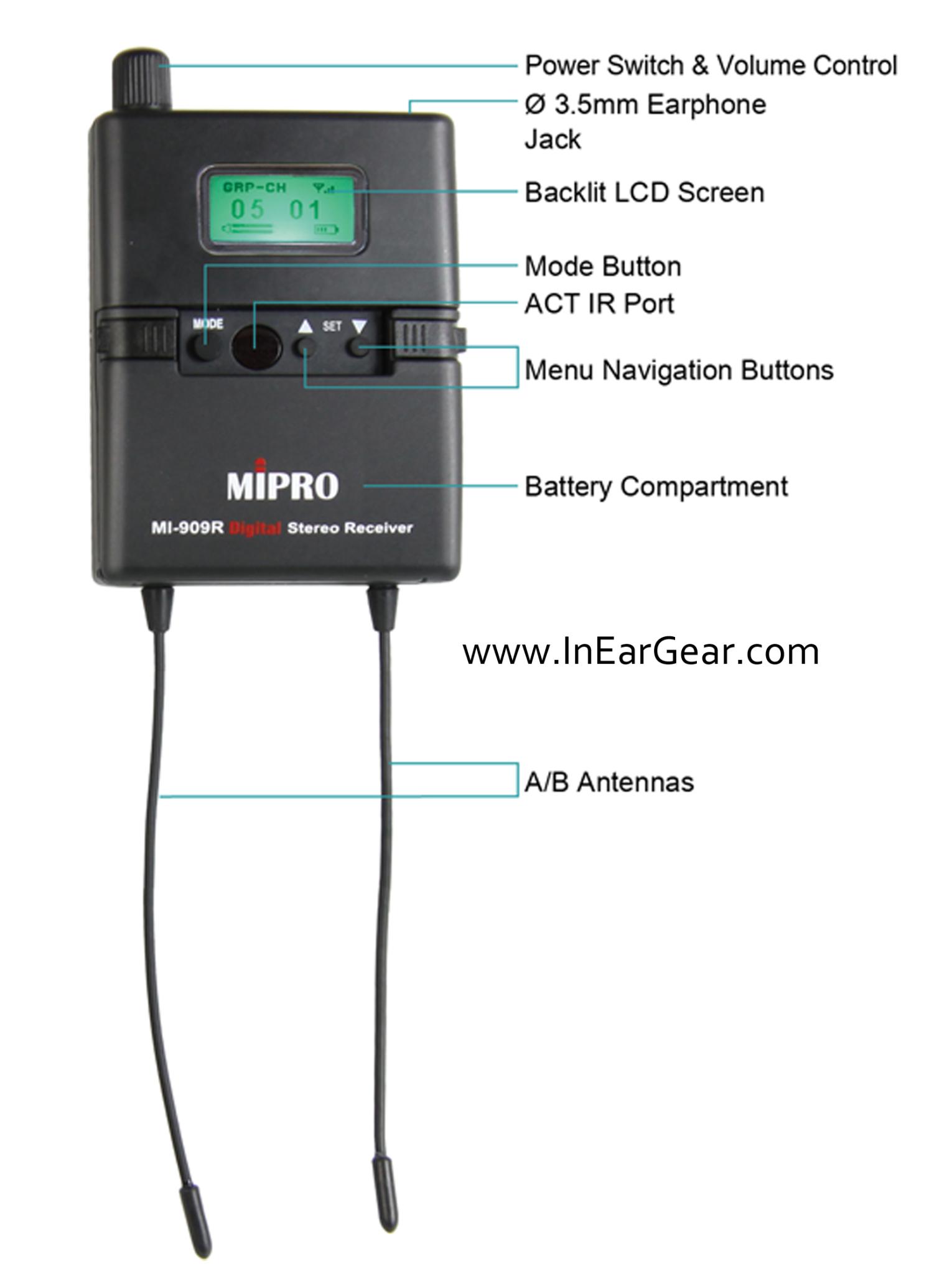

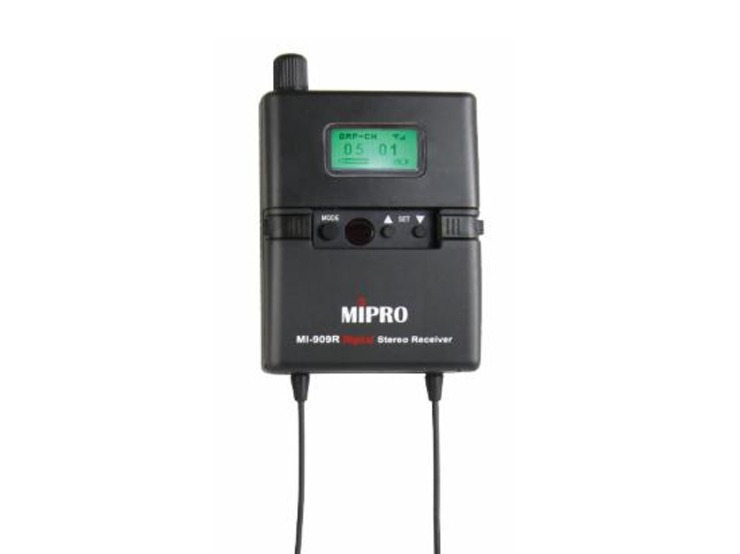

MIPRO MI909R Belt Pack
The Mipro MI-909R True Digital bodypack receiver, the most compact in the industry, has dual antenna true digital diversity reception providing unsurpassed RF Signal stability and extended range. The bodypack receiver features Stereo, Mono-L, Mono-R and Mixed operational modes with balance control and equalization settings.
The Mipro MI-909T True Digital transmitter operates across 64MHz, allowing multiple preset compatible channel operation, adjustable input sensitivity, adjustable RF output and EQ DSP processing. Built-in scan and sync functions enable auto-scanning for open, interference-free frequencies.
• Industry’s most compact and smallest housing.
• Featuring a lightweight, yet rugged, magnesium & glass-fiber reinforced plastic case for stage applications.
• Backlit LCD screen with superior features and advanced function settings.
• Dual-antenna diversity design enhances RF signal stability and extends transmission range.
• Dual unbreakable soft antennas.
• Selectable stereo, balanced, mono & mixed output modes.
• Selectable EQ settings.
• Fast and easy menu controls and indicators accessed by three buttons.
Frequency Range 5E 480~544 MHz
Bandwidth 64 MHz
Channel Grid 25 kHz

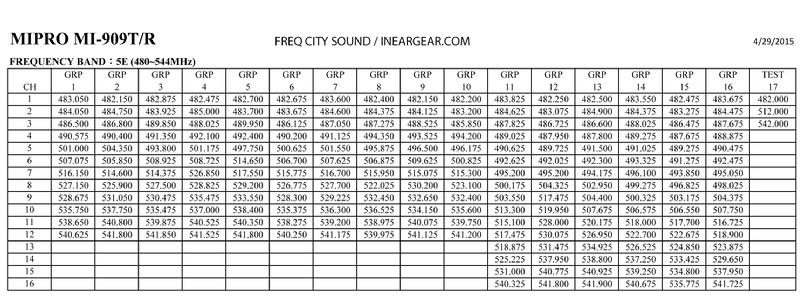

Preset Frequency 12 non-interference compatible frequencies in group 1-10.
16 non-interference compatible frequencies in group 11-16.
16 user-defined frequencies can be stored in group 18.
216 preset frequencies in total.

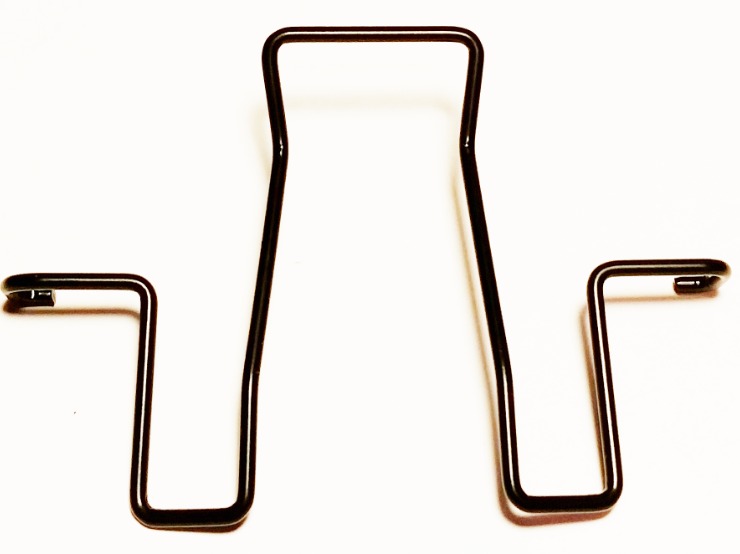

Mipro Belt Pack Belt Clip

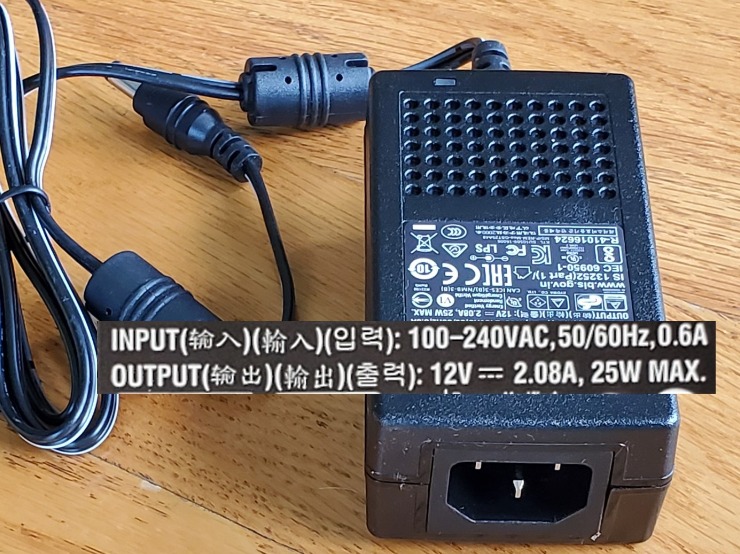

Replacement Power Supply MI909T
Mipro FBC-71 Back to Front Antenna MI909
Mipro FB-72 Side by Side Mount
Mipro MI909R 5E

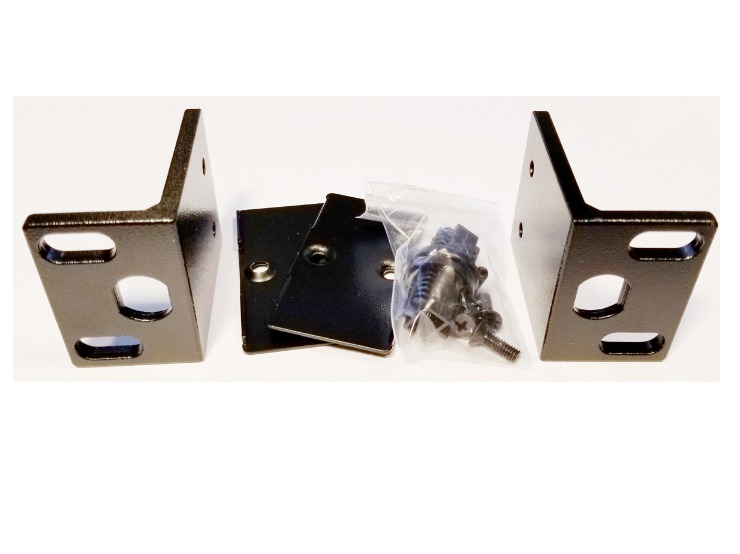

Mipro FB-71 Rack Mount Kit

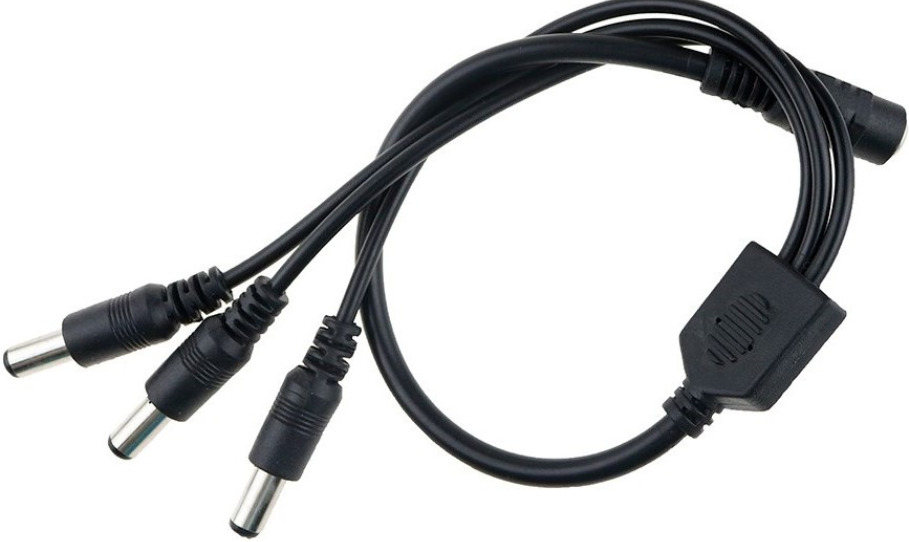

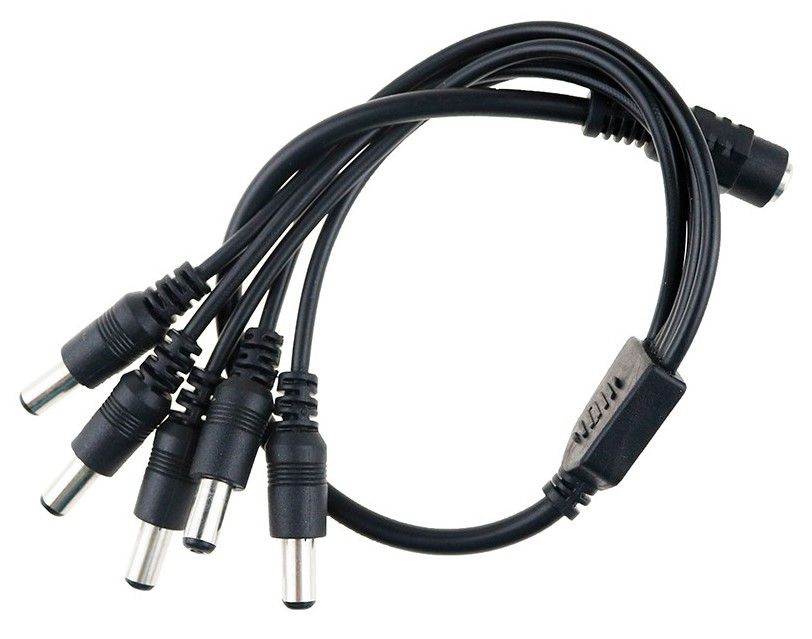

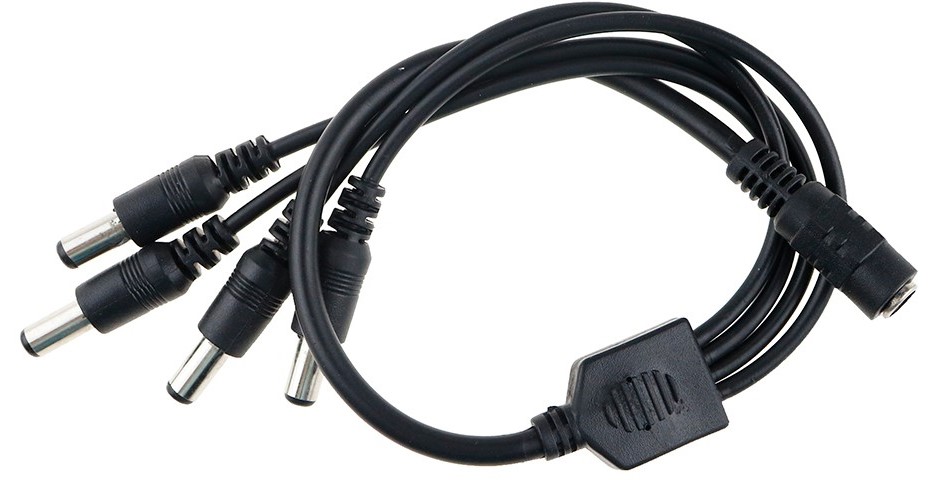

Use one transformer to power 5 systems

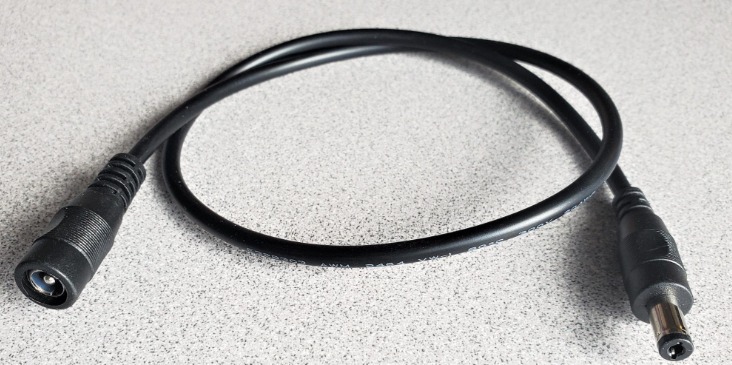

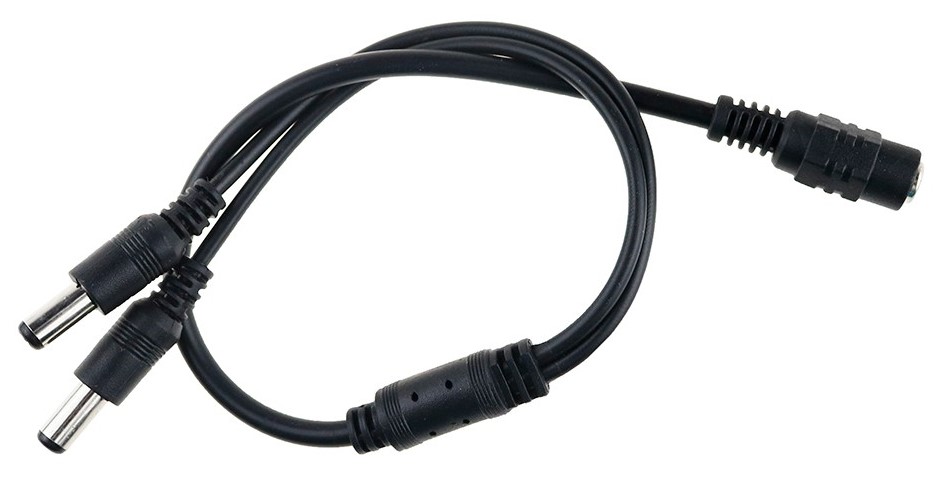

1 to 2 - $17 / 1 to 3 - $18 / 1 to 4 - $19 / 1 to 5 - $20 / 20" Extension - $16

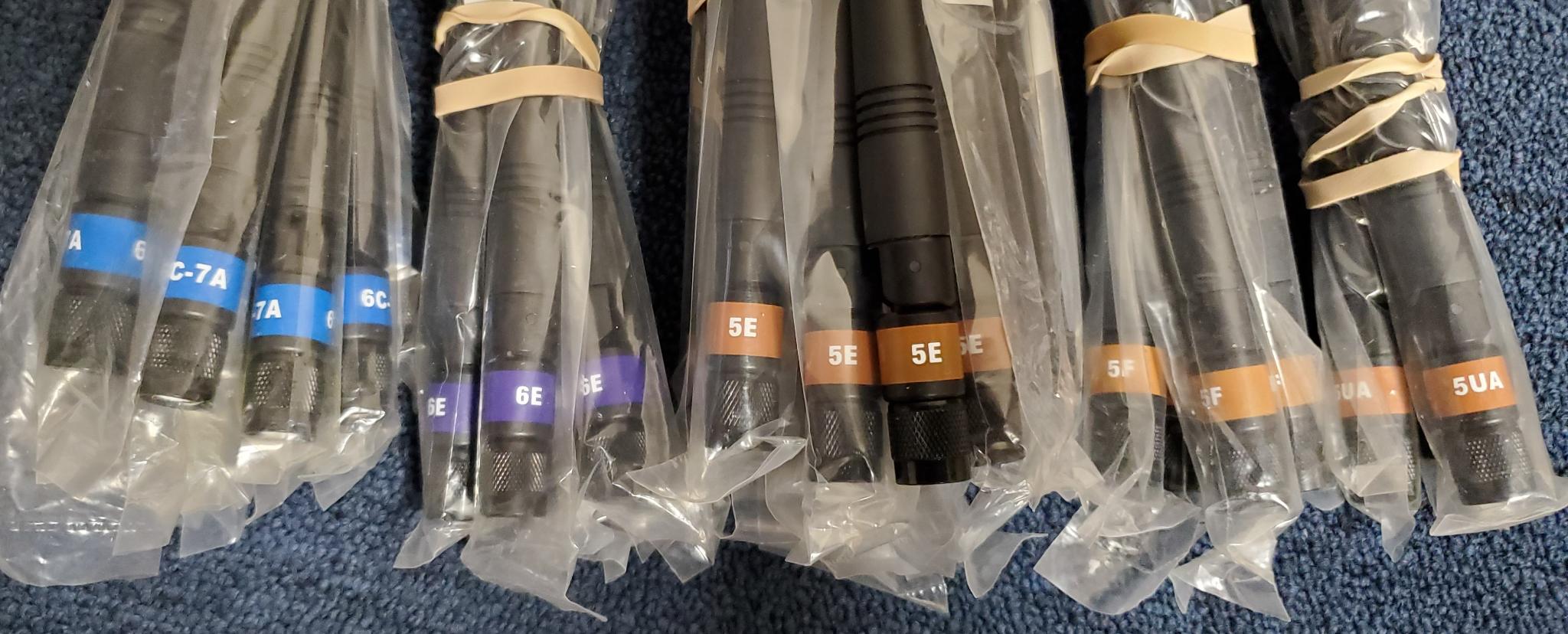

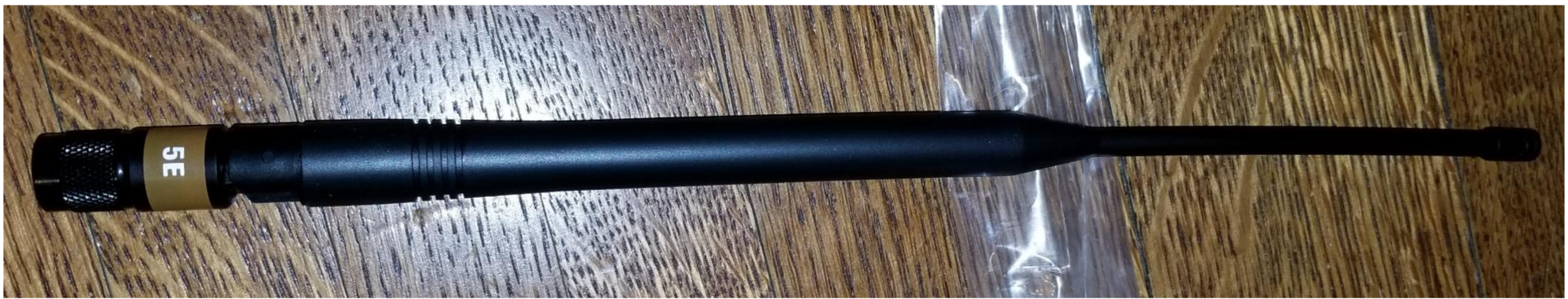

Mipro Replacement Antenna $45 / 5E System. I stock a lot of Mipro antenna including 5F. Email (quickly) which you'd like shipped.

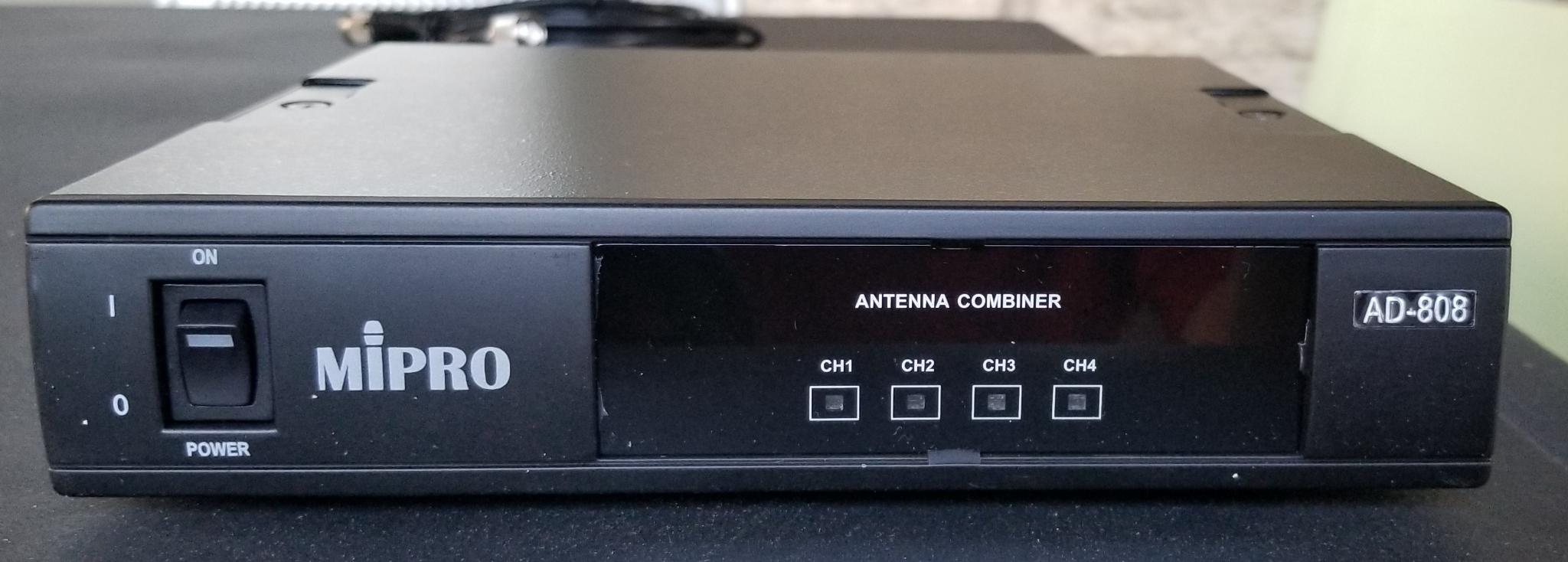

Mipro AD-808 Antenna Combiner $395 Delivered (NO STOCK)
This price includes rack mount parts & back to front antenna extension (which are no longer included from Mipro)

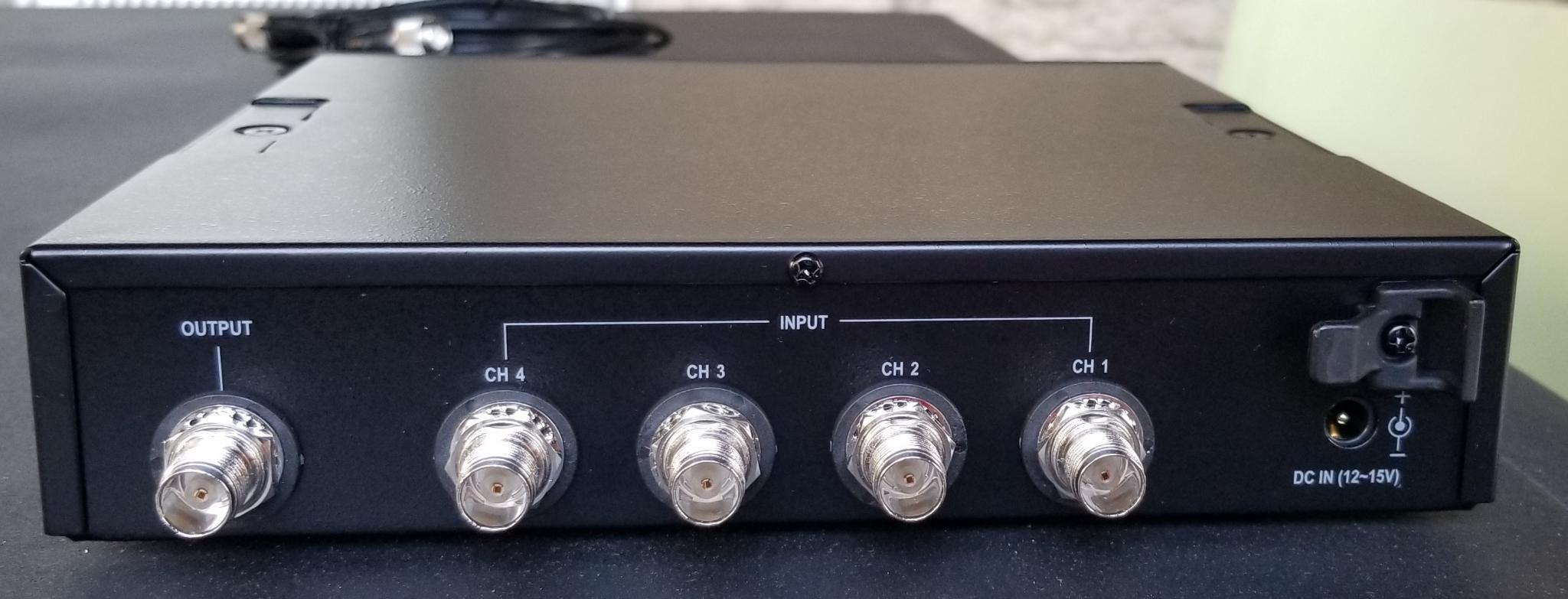

Mipro AD-808 UHF 4-channel active antenna combiner, optimized in the 470 ~ 960 MHz frequency range, is designed for combining the signals of 4 MIPRO MI-909T transmitters into 1 signal, and then transmits that signal from one antenna, reducing stage clutter and improving intermodulation distortion performance. Package includes AD808, 4- TNC jumpers, rack mount parts and back to front antenna extension.

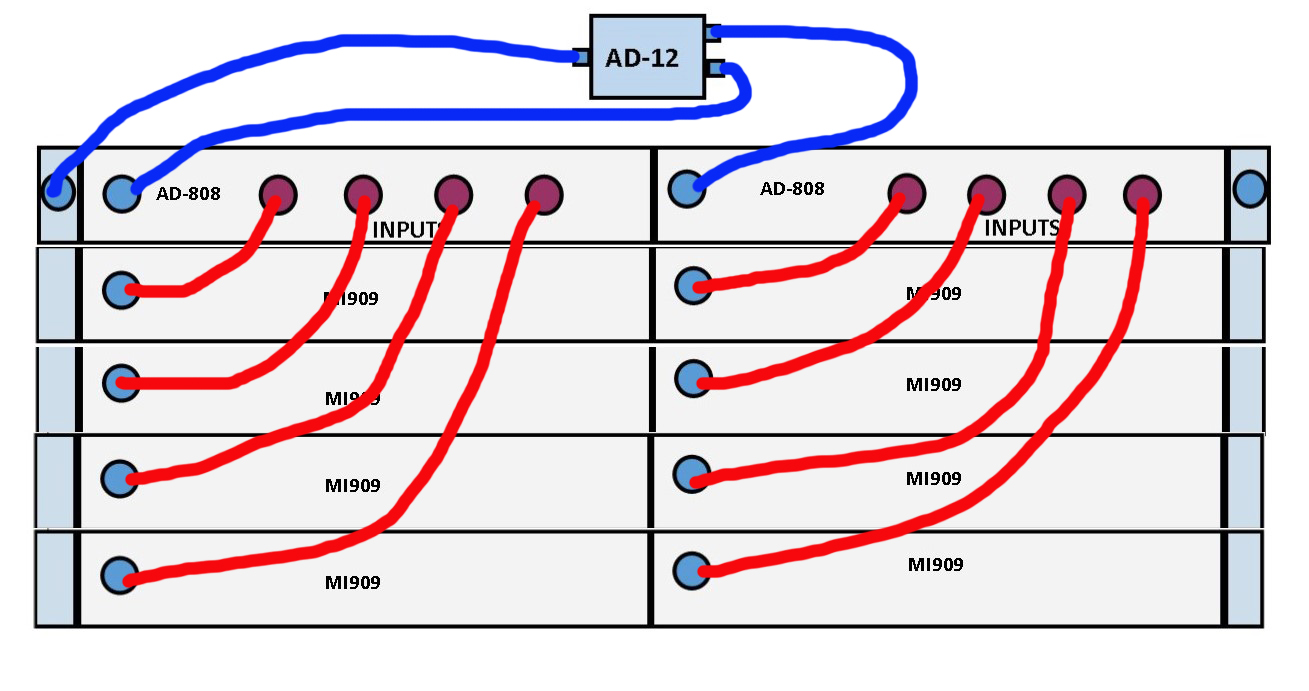

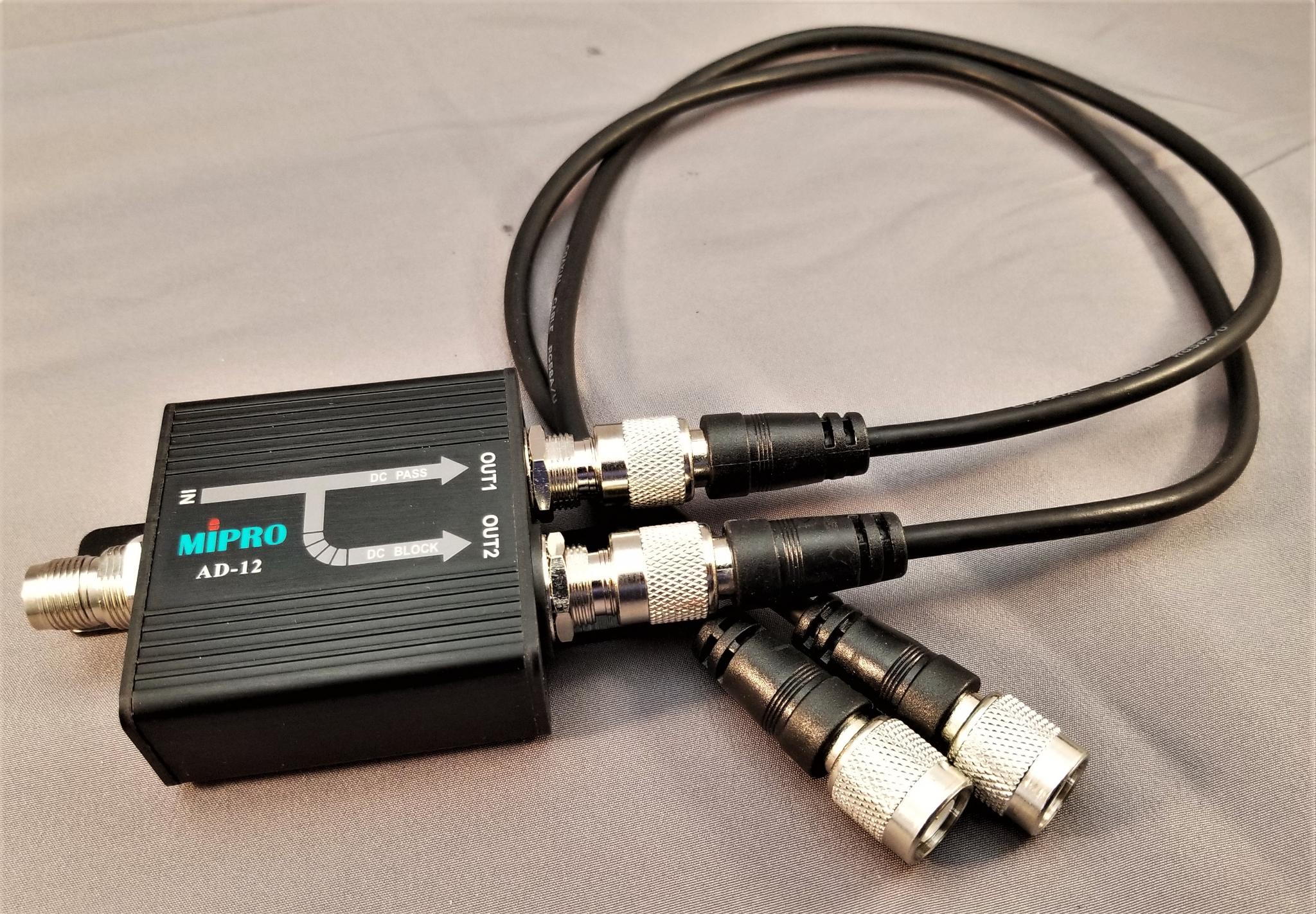

AD-12 Antenna Split or Combine $125 Delivered (USA)Comes with 2 Screw on 20" TNC-M to TNC-M jumper cables
The AD-12 can either divide a RF signal into 2 signal outputs or combine 2 signals into 1 signal output. Simultaneously, it transmits bias voltage to external boosters. It is a required device for antenna system installation.The AD-12 adapts an isolated grounding design to avoid power noise from multi-receiver operation.

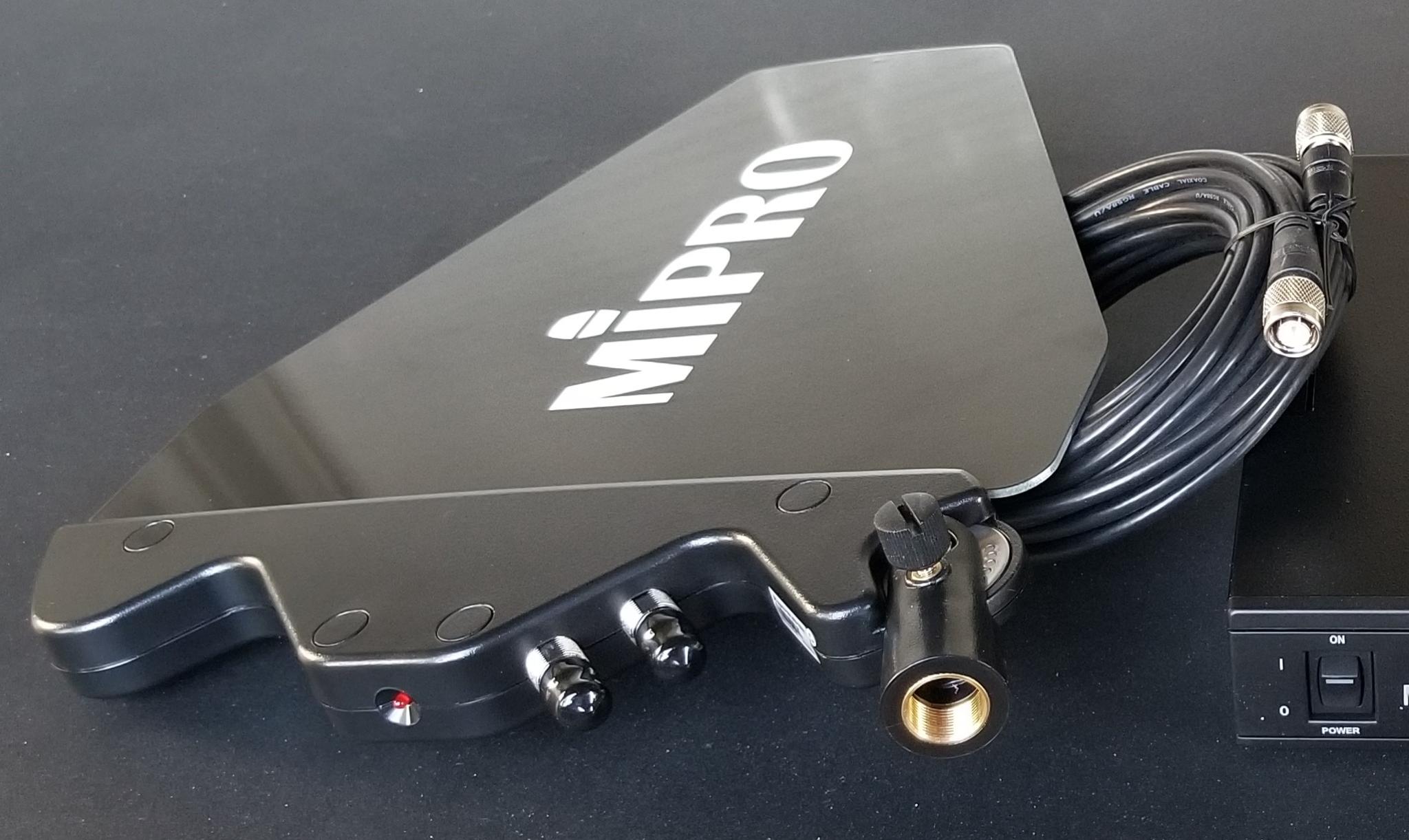

AT-90Wa Wideband Extension Antenna Paddle & 32' Cable $349
The AT-90Wa is a bi-functional log wideband antenna for professional receiving and transmitting. It enhances signal pickup and transmission for MIPRO UHF wireless receivers operating in the 480MHz to 1GHz frequency range and is compatible with US FCC regulations. It has a 4 - 6dBi highly directional pattern which is ideal for tough RF environments requiring strong off axis rejection.

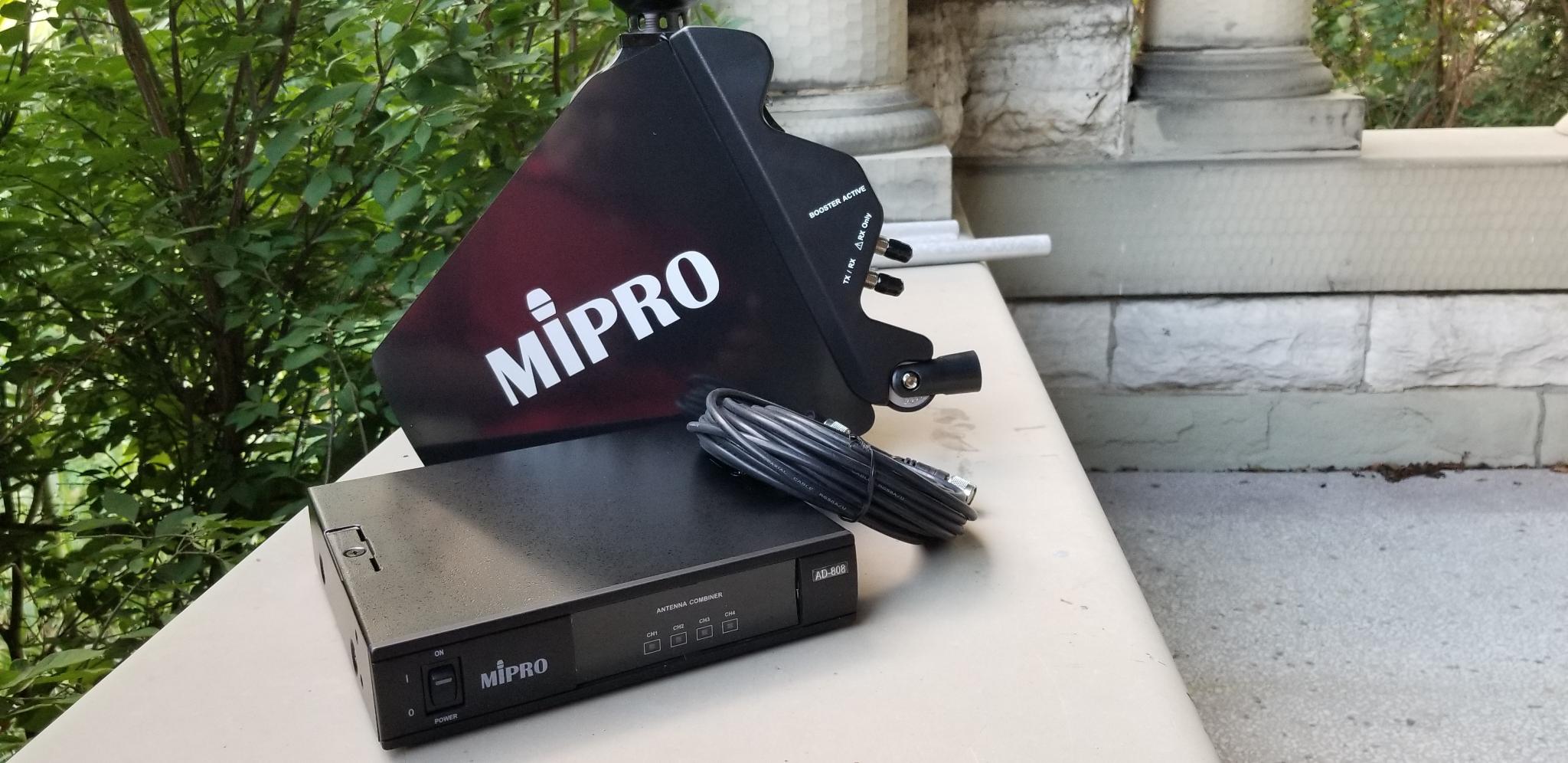

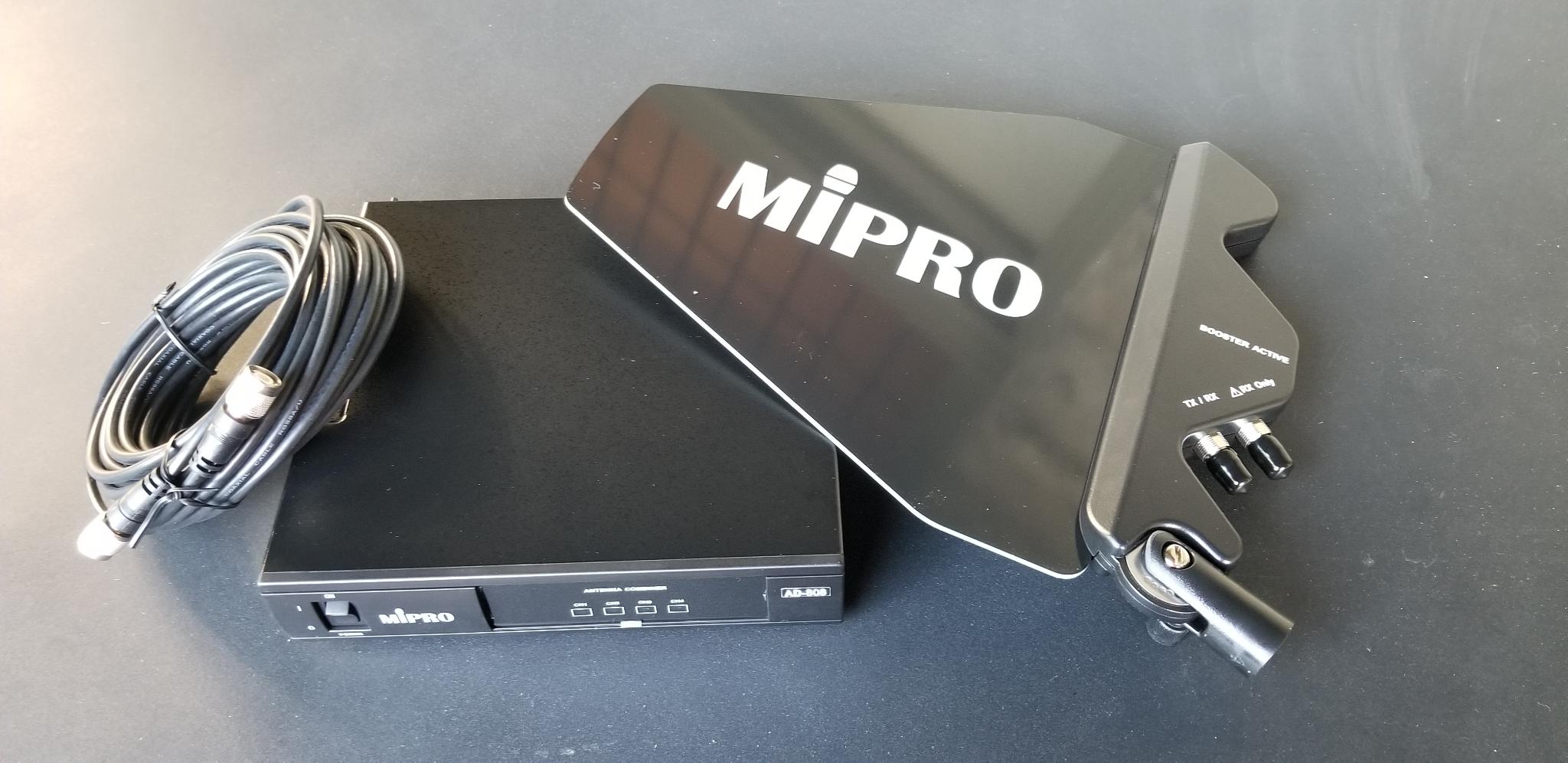

Mipro AD808 Antenna Combiner with AT-90Wa
Wide-band Antenna Paddle & 32' Cable, Pack Parts and back to front antenna extender Package $845

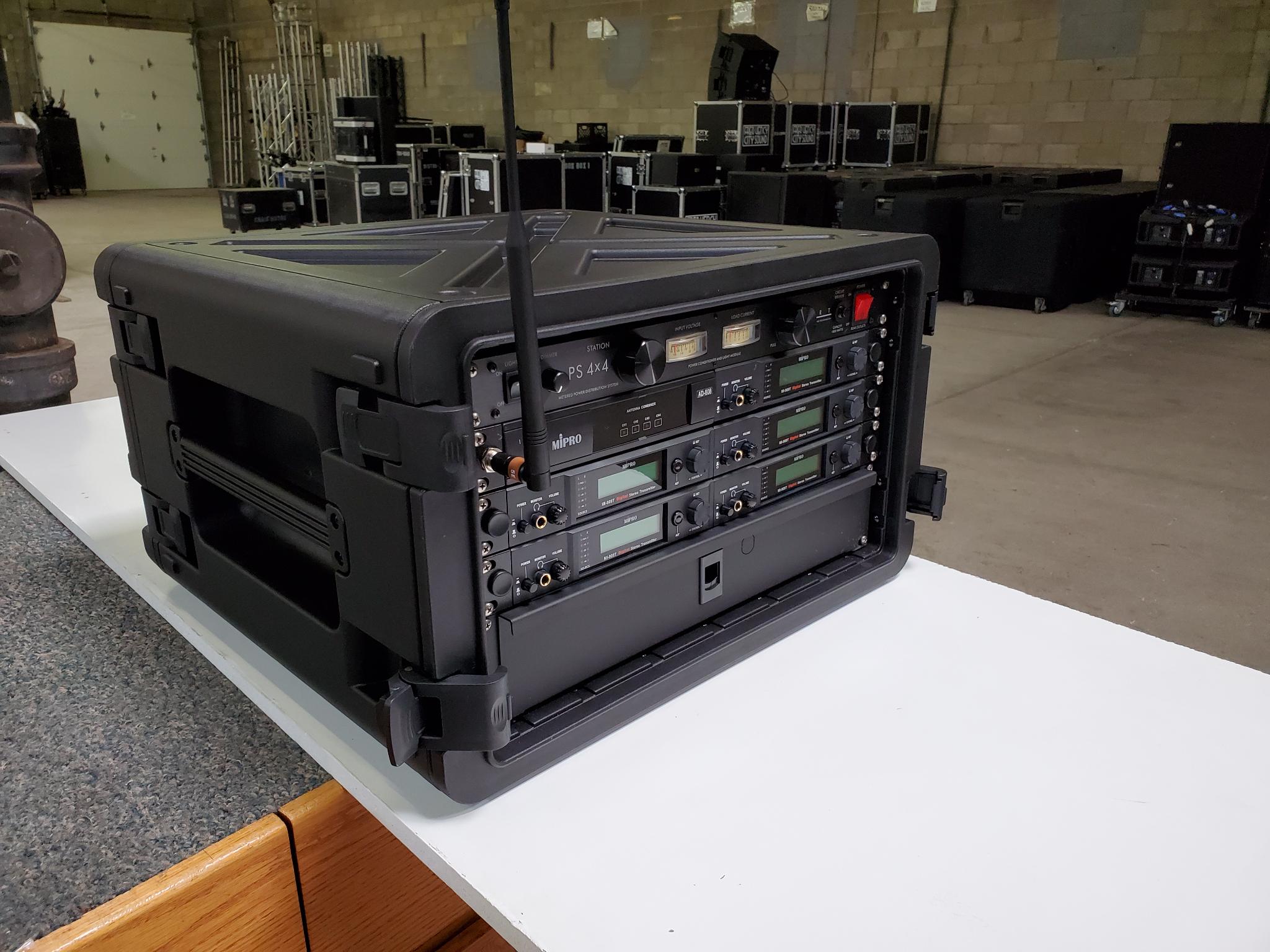

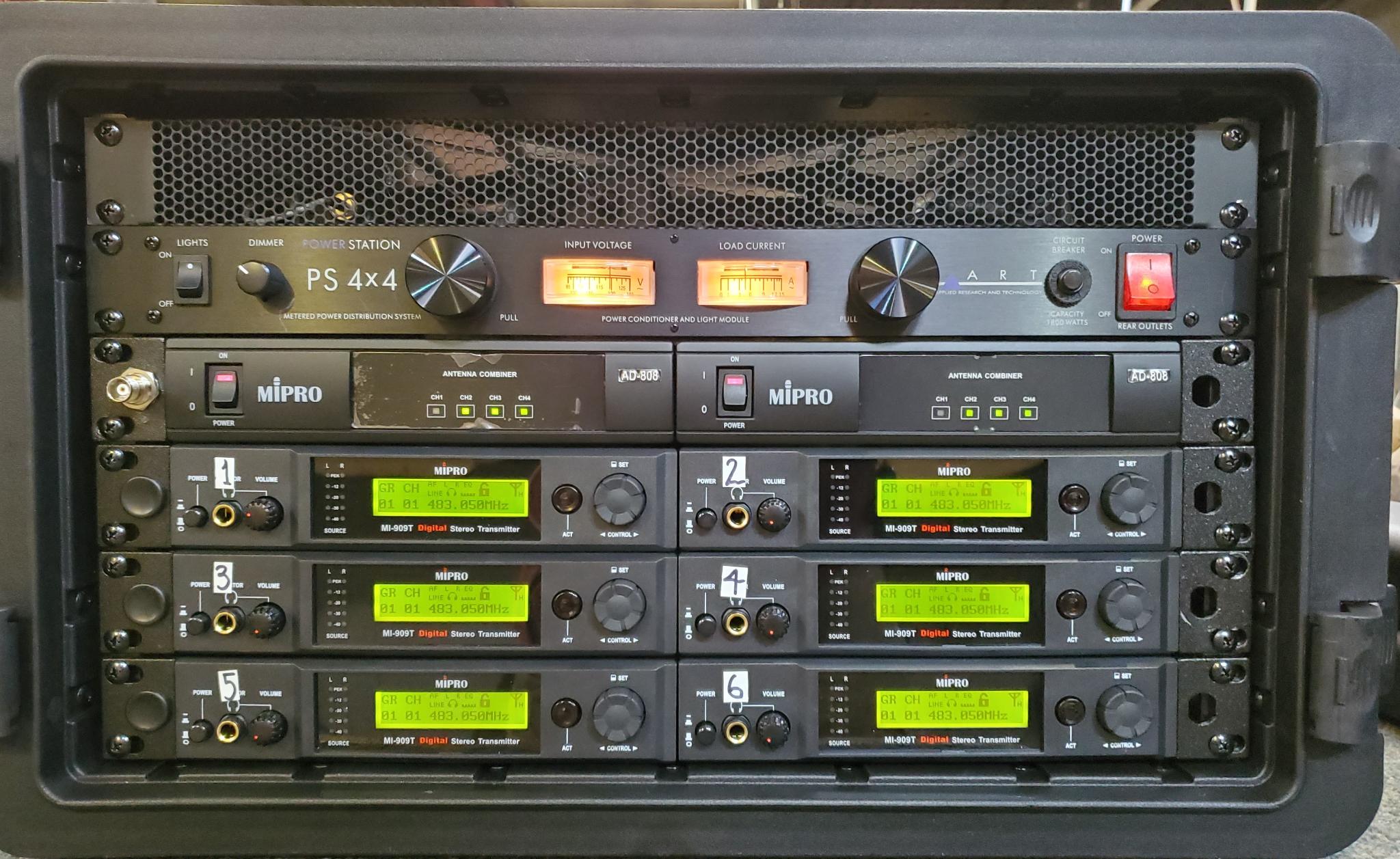

Click Pic for our NEW Custom Design Build Mipro Touring Systems
HOW TO VIDEOS, 1 Transmitter 2 Mixes, Antenna Distribution, MI909 Set Up
Recent Customer review on the Mipro MI909:
The MiPro 909t/r is a game-changer. I play in a touring band with several wireless mics and a wireless router for a digital mixer already in operation. When I was looking to add some wireless IEM's to the system, I was concerned about being able to find clear frequencies in multiple RF-heavy environments like NYC and Washington DC since I sometimes have to hunt with our analog systems. Never had a problem with the digital gear though due to the nature of the technology so I was very interested in what the 909 had to offer. I was primarily comparing it to the Sennheiser G3 and the Shure PSM 900, both of which have fewer features and are significantly more expensive.

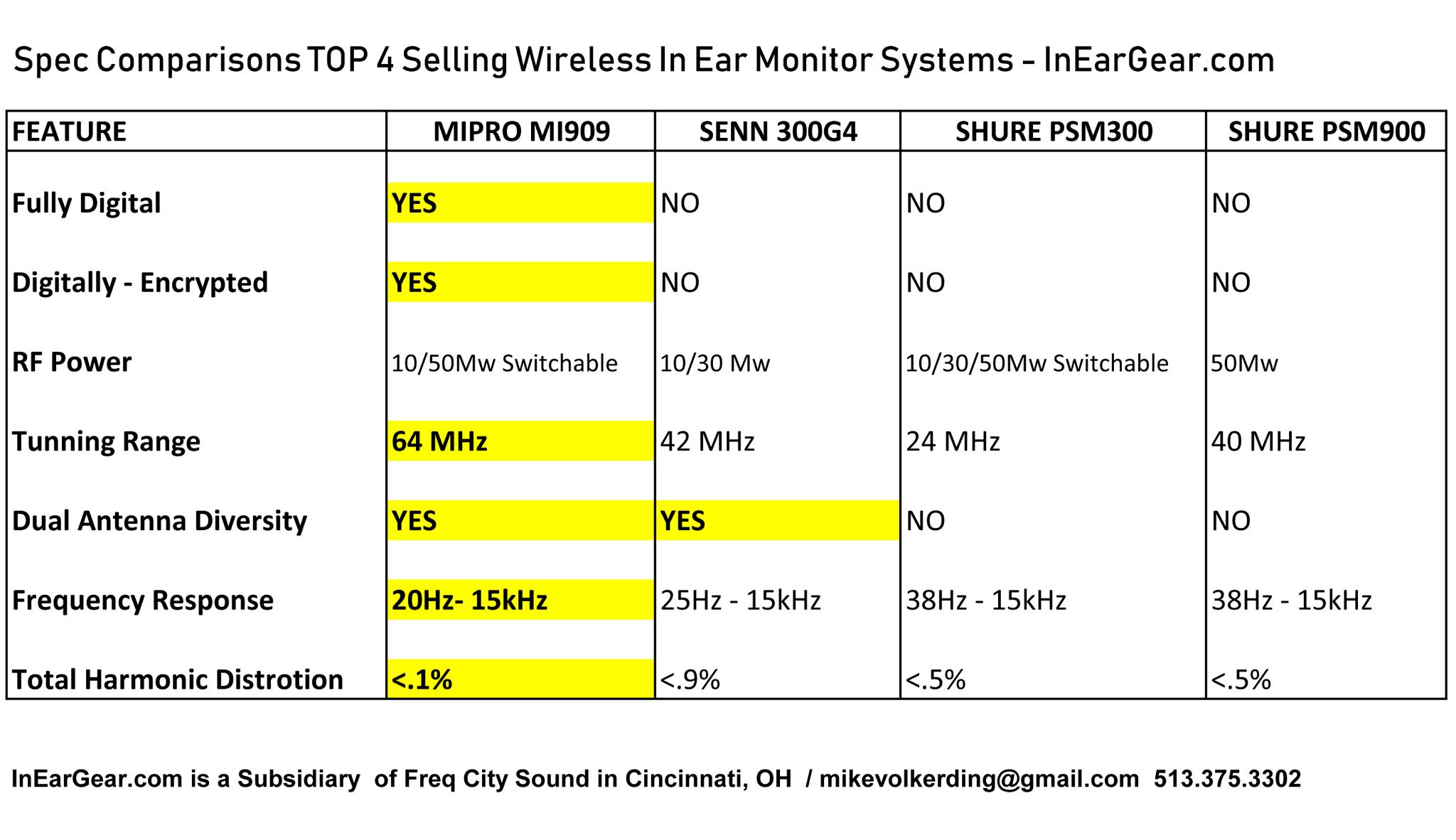

The MiPro offers a huge 64mHz bandwidth for choosing frequencies from vs. Sennheiser's 42mHz and Shure's 36-40mHz. Also the Mipro has better low end response at 20Hz-15kHz vs 25Hz-15kHz for Sennheiser and 38Hz-15kHz for Shure. Total Harmonic Distortion is <.1% vs Shure at <.5% and Sennheiser at <.9%.
The real biggie though is that because it's digital, there is absolutely no companding involved! This means beautiful, full, warm, hardwired-sounding audio from a tiny wireless belt pack with an incredibly low noise floor. The dynamic range is amazing and the low end can feel like subwoofers in your ears with the right mix. The audio is crystal clear and dropout free. I haven't really pushed the range yet, but I was able to easily get 100 or so yards away through 6 walls and down an entire floor with no change in audio quality.
My only concern was whether digital latency would be an issue. Posted latency for the system is 5.84ms. With conventional wedge monitors, I'm already used to hearing about 10ms of latency (I'm 6'5" and I stand maybe 3.5ft from my wedge), so in terms of performance timing, this is actually an improvement. Likewise, anybody playing keys, drums, guitar, bass, etc. will actually be hearing the sound a few ms sooner than they would from monitors or amps by using the MiPro 909. Even horns (I'm a sax player as well as a singer) present no problem from this amount of latency.
I tested by A-Bing the 909 with the direct headphone out on the front channel of my Behringer x32 Rack mixer, both with a wired mic and a Shure PGXD digital mic. In no case did I hear an audible echo so the latency is well under that threshold. With the hardwired mic straight from the front panel as my reference, at very low volumes I could start to hear a little bit of a comb filtering type effect with the hardwired mic through the 909 and a little more with the digital mic. Nothing major, but it was there. However, as I brought the volume up to average performance levels, the sound from the in-ears pretty easily overcame the sound from the bone conduction leaving me with just great digital audio. I think in any scenario where the band is loud enough to require monitors of any kind, latency is really a non-issue here.
All in all, this system is a total knockout and I wouldn't be surprised to start seeing a lot more of them out on the scene as word gets out. MiPro doesn't have the kind of name recognition in the US that the other big guys do, but since they're quite literally the only company with a fully digital IEM on the market, they're bound to start getting some attention soon. Also, a big thank you to Mike from Ineargear.com for pointing me toward such a great product! -Robin Clabby, New Orleans, LA.
